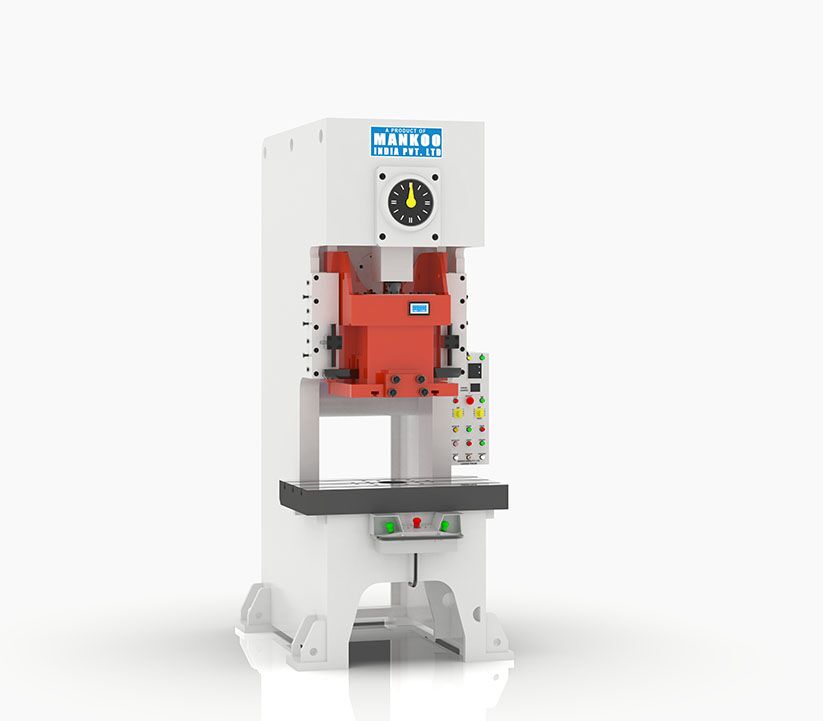

A Cross Shaft Power Press is a specialized type of mechanical press widely used in various manufacturing processes. It operates using a single-point suspension mechanism and is designed to perform tasks such as punching, cutting, bending, and blanking of metal sheets.
Key Features
Design and Construction: The frame of a cross shaft power press is typically made from thick steel plates, which are stress-relieved to minimize residual tensions. This robust construction enhances the machine's durability and stability during operation.
Pneumatic Clutch and Brake: These machines are equipped with a pneumatically operated single-disc clutch and brake system, which allows for smooth operation and reduces wear on components. This system helps in achieving a continuous joint-free stroke without the need for frequent adjustments.
High Precision and Rigidity: Cross shaft power presses are designed to offer high precision forming capabilities, which extend the life of the dies used in the process. They maintain minimal frame gapping and low angular deflection, contributing to accurate machining results.
Gear Transmission: The gear transmission system operates in an oil bath, providing a quiet and vibration-free operation. This setup also ensures that the machine can handle high loads without deforming under pressure.
Operational Mechanism
The operational principle of a cross shaft power press involves converting rotary motion from a motor into linear motion that drives the ram up and down. This action applies significant pressure on the metal workpiece placed between the upper and lower dies. The machine's design allows for various stroke lengths and speeds, making it adaptable to different production needs.
Applications
Cross shaft power presses are utilized across numerous industries, including automotive, aerospace, electronics, and general manufacturing. They are particularly effective for:
Fabricating metal components
Producing automotive parts
Creating intricate shapes from sheet metal
